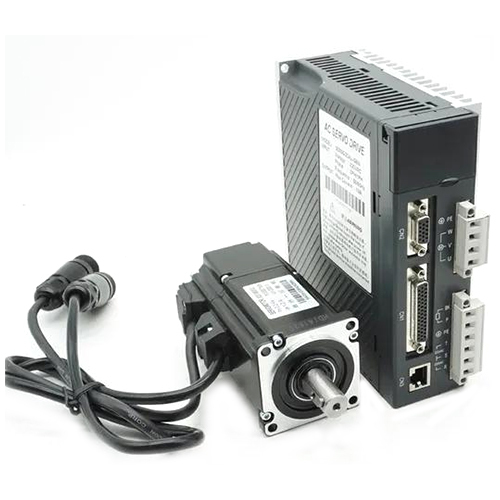

Servo Motor And Servo Drive

Get a Price/Quote

Servo Motor And Servo Drive Specification

Horse Power
0.25 HP to 4 HP (varies by model)

Bearing Type
Ball Bearing

Noise Level
<60 dB

Current Type
AC

Torque
0.64 - 19 Nm (varies by model)

Starting Type
Direct start with controlled acceleration

Standard
CE, RoHS, ISO 9001 (dependent on brand)

Poles Number
4

Sealed Type
IP65 (motor body), Drive: IP20

Rated Frequency
50/60 Hz

Cooling Method
Natural/Forced convection (Drive), Fan/Closed frame (Motor)

Features
High precision, digital control, quick response, compact housing, energy efficient, maintainable via software

Voltage
220V AC (single-phase or three-phase, depending on drive type)

Efficacy
High efficiency (typically >90%)

Ambient Temperature
-20C to +50C

Rated Voltage
220V AC

Pressure
Atmospheric (standard operating)

Motor Type
AC Servo Motor

Power Rating
200W, 400W, 750W, 1kW, 2kW, 3kW (varies by configuration)

Product Type
Servo Motor and Servo Drive

Output Power
200W - 3kW (typical range depending on model)

Frequency (MHz)
Varies with model; typical drive command frequency: up to 1 kHz

Protect Feature
Overload, Overcurrent, Overvoltage, Undervoltage, Over-temperature, Short circuit

Phase
3 Phase

Speed
50 - 3000 RPM depending on motor/drive type

Power
AC/Servo (input power rating varies by model)

Color
Black

Dimension (L*W*H)
Motor and Drive: Varies by model, commonly Motor: 60x60x90 mm, Drive: 180x120x80 mm

Weight
Motor: 1.2 kg, Drive: 2 kg (approximate, varies by model)

Shaft Diameter
8 mm, 14 mm, 19 mm (depending on model)

Mounting Type
Flange Mount

IP Rating
Motor: IP65, Drive: IP20

Vibration
1.5 G max (motor, at 10-55Hz)

Brake Option
Electromagnetic brake (optional)

Insulation Class
Class F

Feedback Type
Incremental/Absolute Encoder (optical, up to 17-bit)

Communication Ports
RS232/RS485, Pulse/Analog, CANopen, Modbus supported

Response Time
<2 ms (typ.)

Relative Humidity
<85% non-condensing

Linearity
0.05%

Control Modes
Position, Speed, Torque control

Lifetime
>20,000 hours (bearing, under rated load)

Application
CNC machines, Robotics, Conveyor, Industrial automation, Textile machinery

Encoder Resolution
2500 PPR - 20,000 PPR (varies by model)

Servo Motor And Servo Drive About

Spotlight your industrial automation with our exclusive Servo Motor And Servo Drive, celebrated for their high precision and reliability. Available with customizable options like Incremental or Absolute Optical Encoders, these valiant systems support diverse control modes: Position, Speed, and Torque. Marvelous communication versatility includes RS232/RS485, CANopen, and Modbus interfaces. Featuring electromagnetic brake (optional), Class F insulation, and robust IP65 motor protection, this system guarantees rapid response (<2 ms), quiet operation (<60 dB), and enduring bearing life (>20,000 hours). Ideal for CNC machines, robotics, and conveyors, engineered for efficiency exceeding 90%.

Dynamic Application Areas & Versatile Usage

Servo Motor And Servo Drive units are celebrated in industrial sectors like CNC machinery, robotics, conveyors, and textile automation. Their adaptable use includes speed, position, and torque control, ensuring seamless integration in both automated and semi-automated environments. Built for application media such as mechanical assemblies, automated lines, and process machinery, they operate effortlessly under variable ambient conditions. Enjoy unparalleled precision and durability for dynamic environments where high performance is essential.

Premium Certifications & Reliable Supply

Servo Motor And Servo Drive solutions come with premium certifications such as CE, RoHS, and ISO 9001, substantiating their global quality standards. Designed for exporters, traders, and manufacturers, they are dispatched efficiently across India and beyond. Supply ability meets both bulk and tailored requirements, with sample policies available upon formal quotation. Clients can expect dependable delivery timelines, ensuring projects proceed smoothly with reliable technology.

FAQ's of Servo Motor And Servo Drive:

Q: How do I select the suitable servo motor and drive configuration for my application?

A: Choosing the right configuration is based on parameters like required output power, torque, speed range, encoder resolution, and application environment. Understanding your machine's specific needs, such as CNC machining, robotics, or conveyors, will help narrow down the correct model.

Q: What are the key benefits of using an incremental or absolute optical encoder?

A: Incremental encoders offer cost-effectiveness and simplicity, ideal for applications that do not require absolute positioning. Absolute encoders provide high precision and accurate position feedback, essential in safety-critical or multi-turn environments.

Q: Where are these servo motors and drives most commonly used?

A: These products are widely applied in robotics, CNC machines, conveyors, industrial automation systems, textile machinery, and any setup requiring high-precision digital motion control in demanding environments.

Q: What process is involved in the dispatch and delivery of these servo products?

A: After a formal quotation and order confirmation, products are tested, securely packaged, and dispatched efficiently to domestic and international destinations, adhering to premium safety and timing standards.

Q: How do the protection and insulation features benefit my operation?

A: Features like overload, overvoltage, underscored insulation (Class F), and high IP ratings (IP65 for motors) ensure equipment longevity and reliable operation, even in challenging industrial conditions, reducing downtime and maintenance costs.
