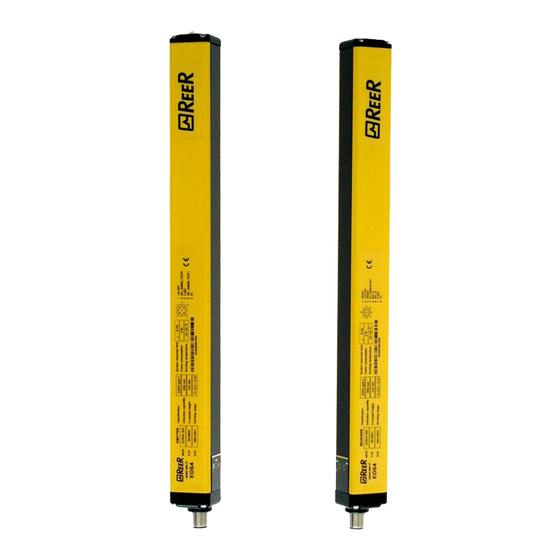

Safety Light Curtain

Name: Safety Light Curtain
Brand: EYANMI TECHNOLOGIES PRIVATE LIMITED
Price: 21187.0 INR
Availability: InStock

Price 21187.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

Safety Light Curtain Specification

Features
Status LEDs, automatic beam coding, no blind zones, plug-and-play commissioning

Application
Industrial, automation, hazardous area protection

Mounting Type
Vertical or horizontal mounting

Interface
4/5-pin M12 connector

Measurement Range
Up to 10 m (with sender and receiver)

Sensor Type
Photoelectric safety sensor

Housing Material
Aluminum

Cable Length
Up to 50 m with extension cable

Wireless
No

Operating Temperature
-30C to +55C

Ingress Protection
IP65/IP67

Mounting Thread
M6

Power Consumption
3 W (per device)

IP Rating
IP65/IP67

Spectral Range
Infrared (IR)

Signal Type
PNP

Response Time
12 ms to 17 ms (depending on length and resolution)

Product Type
Safety Light Curtain

Material
Aluminum/Plastic

Input
24 V DC, class 2 (EN60204-1), PELV, via male connector, 5-pin

Output
2 safety PNP outputs (OSSD)

Function
Finger and hand detection, machine safety protection

Usage
Industrial machine safeguarding

Resolution
14 mm, 30 mm (depending on model)

Voltage
24 V DC

Weight
Approx. 1 kg (depending on type and length)

Enclosure Dimensions
28 mm 33 mm cross-section

Environmental Resistance
Vibration: 5 g, 10 Hz ... 55 Hz; shock: 10 g, 16 ms, EN 60068-2-6

Light Source
Infrared LED, wavelength 950 nm

Number of Beams
Varies by length and model

Height of Protected Area
150 mm to 2100 mm (depending on variant)

Start/Restart Interlock
External manual and automatic reset possible

Max Distance Between Tx/Rx
Up to 10 meters

Connection Type
M12 connector, 4/5-pin

EDM Monitoring
Yes (optional)

Safety Light Curtain Trade Information

Minimum Order Quantity
1 Number

Delivery Time
1 Days

Safety Light Curtain About

Procure the deTec4 Core Safety Light Curtain for transcendent industrial safety and unmatched protection. Distinguished by its superlative infrared LED technology (wavelength 950 nm), this core safety curtain offers a protected height from 150 mm to 2100 mm, accommodating various operational demands. Add to Cart and safeguard your machinery with robust environmental resistance (IP65/IP67), up to 10 meters range, and ultra-fast response times (12-17 ms). Order today to experience optimal safety and compliance in your production line, leveraging advanced EDM monitoring, effortless M12 connector installation, and reliable finger/hand detection for hazardous area protection. Manufactured for longevity, flexibility, and effortless integration.

Versatile Applications and Superior Usage

The deTec4 Core Safety Light Curtain excels across a multitude of industrial environments-automated production lines, hazardous machine perimeters, and high-risk automation cells. Designed for both vertical and horizontal mounting, it ensures optimal surface coverage and adapts seamlessly to various machinery safeguarding requirements. With resolutions of 14 mm or 30 mm, it provides precise finger and hand detection, making it ideal for machine tool operations, robotic areas, and conveyor protection, enhancing operator safety in every application area.

Export Markets, Delivery & Sample Dispatch

Primarily exported to distinguished markets worldwide, the deTec4 Core Safety Light Curtain is a preferred choice for global exporters, importers, suppliers, and industrial retailers across India and beyond. Benefit from our quick shipment procedures-promptly dispatched with reliable logistics support. Sample policies are tailored for your procurement convenience, ensuring you can assess the product before placing large orders. Expect streamlined ordering, secure packaging, and timely delivery right to your destination.

FAQ's of deTec4 Core Safety Light Curtain:

Q: How does the deTec4 Core Safety Light Curtain enhance machine safety?

A: The deTec4 Core Safety Light Curtain uses infrared LED beams to detect finger or hand intrusion, instantly stopping hazardous machine operations and preventing workplace injuries, thereby offering reliable machine safety.

Q: What application areas are best suited for the deTec4 Core?

A: This safety light curtain is perfect for industrial machine safeguarding, robotic cells, automated production lines, and hazardous area protection, catering to industries that require precise and quick detection of operator presence.

Q: Where can I install the deTec4 Core light curtain?

A: The unit supports both vertical and horizontal mounting, allowing flexible installation on a variety of machinery and conveyor systems where safeguarding is crucial.

Q: What is the process for ordering and receiving the product?

A: To order, simply add the desired model to your cart and complete the procurement steps. Expect quick dispatch and reliable shipment; delivery occurs within a specified timeframe, as per logistics arrangements.

Q: When should I consider using an EDM monitoring feature?

A: EDM monitoring is recommended when verifying the integrity of external relays or contactors in safety circuits is necessary, ensuring compliance and higher machine protection standards.

Q: What are the key benefits of using this safety curtain in automation?

A: It offers superlative safety, plug-and-play commissioning, no blind zones, rapid response, environmental resistance, and adaptable configuration-making it indispensable for modern industrial automation and safeguarding.
