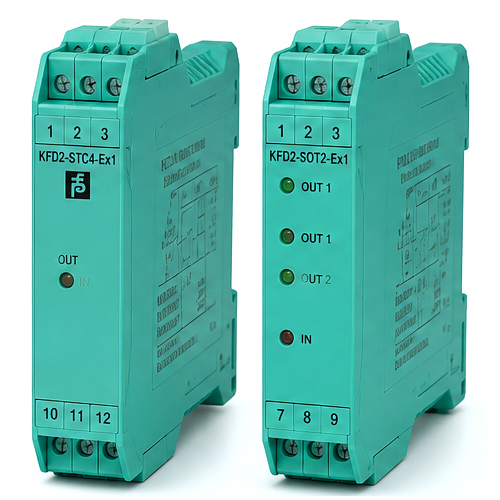

K-System Signal Isolator

Get a Price/Quote

K-System Signal Isolator Specification

Shape
Rectangular/DIN Rail Mount

Overheating Protection
Yes, with auto-recovery

IP Rating
IP20

Insulation Material
High-Grade Polymer

Efficiency
Typical >98%

Connector Type
Screw-In Terminal Blocks

Operating Temperature
-20C to +60C

Feature
Galvanic Isolation, High Accuracy, LED Status Indication

Power Factor
N/A (DC operated device)

Humidity %
10% to 90% RH, non-condensing

Mounting Type
DIN Rail Mounting

Surface Finish
Matt/Gloss Plastic Finish

Product Type
Signal Isolator

Application
Industrial Automation, Signal Isolation, PLC Applications, Instrumentation

Protection Level
Short Circuit, Over Voltage and Reverse Polarity Protection

Frequency (MHz)
DC (0 Hz), suitable for analog signals up to 10 kHz bandwidth

Rated Voltage
24V DC

Energy Consumption
Less than 1W

Output Type
Analog (4-20mA, 0-10V options)

Color
Green

Dimension (L*W*H)
Approx. 120 x 22.5 x 110 mm

Weight
Approx. 120 g

Input Voltage
24V DC (18-30V range supported)

Size
22.5 mm width

Phase
Single Phase

Material
ABS/Polycarbonate Plastic

No Of Poles
2

Connection Type
Screw Terminal

Accuracy
<0.1% of span

Status Indication
Dual LED indicators (power, signal)

Vibration Resistance
Tested up to 2g

Response Time
<10 ms

Input Signal
0/4-20 mA, 0-10V DC

Storage Temperature
-40C to +85C

Isolation Voltage
Up to 2.5 kV AC between input/output/power

Output Signal
0/4-20 mA, 0-10V DC (configurable)

K-System Signal Isolator About

Discover the latest K-System Signal Isolator at an unbeatable price during our clearance sale! This exceptional device delivers highly accurate performance, offering configurable input and output signals (0/4-20 mA, 0-10V DC) with a rapid response time of less than 10 ms. The meritorious construction ensures up to 2.5 kV AC isolation voltage, safeguarding your automation and instrumentation setups. Designed with dual LED indicators, robust short-circuit, overvoltage, and reverse polarity protections, this polished isolator is perfectly suited for all major industrial PLC applications. Grab yours today from India's leading exporter, retailer, and manufacturer!

Wide-Ranging Industrial Applications and Versatile Use

The K-System Signal Isolator is suitable for a wide array of application media including industrial automation, PLC interfaces, and sophisticated instrumentation environments. Frequently used by technicians, engineers, and plant operators, this device provides general signal isolation for analog transmission and specific protection for sensitive control systems. Its precision and robust build quality make it invaluable for facilities aiming to enhance operational reliability while ensuring electrical safety across all critical phases of automation.

Sample Policy, Delivery Time, and Payment Terms

We offer a flexible sample policy-kindly refer to the list price for all sample requests. Rapid order completion is a priority, with most standard models ready for handover or shipping within 3-7 working days of confirmation. Payment terms are straightforward and customer-centric, supporting multiple modes for your convenience. Our focus remains on transparent dealings and timely deliveries, ensuring the best value and satisfaction from inquiry through to final order fulfillment.

FAQ's of K-System Signal Isolator:

Q: How does the K-System Signal Isolator enhance the safety of PLC applications?

A: By providing galvanic isolation up to 2.5 kV AC, the K-System Signal Isolator protects PLCs and connected devices from electrical surges, short circuits, and overvoltage conditions, ensuring safe and reliable operation.

Q: What input and output signals can the K-System Signal Isolator handle?

A: This device is configurable for both 0/4-20 mA and 0-10V DC signals on both input and output sides, offering flexibility for various industrial signal types.

Q: Where can I use the K-System Signal Isolator in industrial setups?

A: It is ideal for use in automation systems, PLC applications, and instrumentation panels where signal integrity and electrical isolation are required for analog signals up to 10 kHz bandwidth.

Q: What is the process for ordering and receiving a sample unit?

A: Samples can be requested based on the list price. Upon confirmation, order completion and handover or shipment of standard units typically occur within 3-7 working days.

Q: What are the main benefits of using a K-System Signal Isolator in automation?

A: Users benefit from high accuracy (<0.1% of span), quick response time (<10 ms), and robust protection features, resulting in enhanced equipment safety, reduced downtime, and optimized signal quality.
