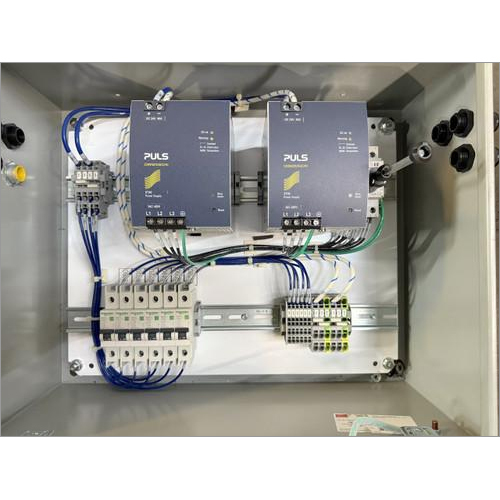

Buffer Module

Get a Price/Quote

Buffer Module Specification

Power Source
Electrical mains supply

Thermal Conductivity
Standard enclosure with ventilation

Response Time
<5 ms (signal buffering response)

Usage
Industrial automation and control systems

Sensors Specification
None integrated

Features
Reliable buffering, surge protection, easy DIN rail mounting, compact design

Power Supply
Electrical

Display Type
Indicator LEDs (status display on module)

IP Rating
IP20 (enclosure), can vary by model

Operating Temperature
-10C to 55C

Components
Terminal blocks, wiring, buffer modules, relay, power connectors

Input
24V DC terminal input

Interface
Screw terminals, DIN rail mount

Output
Buffered 24V DC, multiple terminal outputs

Product Type
Buffer Module

Application
Automation panels, control cabinets, electrical systems

Rated Voltage
24V DC

Supply Voltage
24V DC

Size
Module dimension approx. 120mm x 160mm

Dimension (L*W*H)
Enclosure: approx. 300mm x 300mm x 150mm

Function
Electrical buffering and signal management in control panels

Color
Grey

Weight
Approx. 4-6 kg (including module and enclosure)

Current Rating
Up to 10A (per module, varies by configuration)

Thickness
Module: approx. 40-50 mm

Capacity
Depends on terminal count, typically supports multiple nodes

Frequency
DC device, not frequency-dependent

Maintenance
Minimal, periodic inspection recommended

Wiring Type
Pre-wired internal connections, external terminals for easy install

Material
Powder-coated metal enclosure, polycarbonate module casing

Mounting Type
DIN rail or back panel mounting

Safety Features
Overcurrent and short-circuit protection

Connectivity
Multiple cable gland entries for versatile wiring

Buffer Module About

Discover the Featured Buffer Module, an enviable addition to any industrial automation and control system. Designed for DIN rail or back panel mounting, this affordable solution boasts praiseworthy savings through minimal maintenance and easy installation, thanks to pre-wired internal connections and accessible external terminals. Encased in a superior powder-coated metal enclosure with a robust polycarbonate casing, it supports multiple node connectivity and provides reliable electrical buffering and surge protection. Rated at 24V DC with a current rating of up to 10A, this grey module is your trusted partner for safe, long-lasting control panel operations.

Advanced Usage and Extra Features for Industrial Control

Engineered for superior performance in automation panels, electrical control cabinets, and system integration, the Buffer Module supports signal management in complex setups. It features overcurrent and short-circuit protection, status indicator LEDs, and a compact, modular design. With multiple cable gland entries and easy DIN rail mounting, it excels in demanding environments. Its flexibility, high capacity for node support, and rapid response time make it ideal for industrial automation and electrical system protection.

Secure Packaging, Global Markets, and Supply Logistics

Every Buffer Module is provided with secure packaging to prevent transit damage and facilitate safe handling. Rigorously packed, units are handed over to trusted shipping partners for prompt global delivery. Our supply network extends across India and renowned international markets, offering reliable service to importers, exporters, traders, and wholesalers. We ship from major FOB ports ensuring timely dispatch and consistent supply to a broad customer base in automation and industrial control.

FAQ's of Buffer Module:

Q: How is the Buffer Module installed in control panels or cabinets?

A: The Buffer Module enables easy installation with a choice of DIN rail or back panel mounting. External screw terminals and pre-wired connections streamline the process, making integration into automation panels and control cabinets quick and straightforward.

Q: What are the main features that set this Buffer Module apart from others?

A: This module stands out for its robust powder-coated metal enclosure, polycarbonate casing, superior overcurrent and short-circuit protection, reliable electrical buffering, easy DIN rail mounting, and versatile cable gland entries. Indicator LEDs offer clear status display, enhancing monitoring and usability.

Q: Where is the Buffer Module primarily used?

A: Primarily, the Buffer Module is applied in industrial automation systems, control panels, and electrical cabinets. Its design supports reliable signal management and power buffering, making it well-suited for use in factories, manufacturing units, and large-scale electrical installations.

Q: What is the process for maintaining the Buffer Module?

A: Maintenance of the Buffer Module is minimal, requiring only periodic inspections to ensure all electrical connections remain secure and that the enclosure is free from dust and debris. Its durable materials and built-in protection reduce the overall need for frequent servicing.

Q: What are the benefits of using a Buffer Module in automation systems?

A: Benefits include enhanced reliability of control panels, superior protection against electrical surges, easy installation, efficient signal management, and support for multiple terminal outputs. These features contribute to the stability and longevity of your industrial automation setup.
