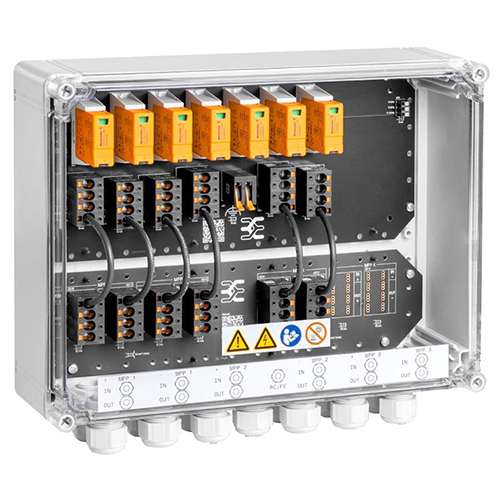

String Monitoring Box

Get a Price/Quote

String Monitoring Box Specification

Features
Multi-string current monitoring, surge protection, fuse/mcb protection, data logging (optional)

Maintenance Type
Low/Periodic (visual inspection, fuse replacement if needed)

Efficiency
>99% (minimized losses in monitoring circuit)

Input Voltage
Up to 1000V DC

Product Type
String Monitoring Box

Material
Polycarbonate/Metallic enclosure (industrial grade)

Power
Up to 1000V DC (typical)

Operating Temperature
-25C to +60C

Max Voltage
1000V DC

Max System Voltage
1500V DC (on request)

Output Voltage
Typically 24V/48V through auxiliary output (if applicable)

Cable Length
Customizable as per application

Switch Mode
Not Applicable (Passive device)

Size
Medium (customized based on string count)

Dimension (L*W*H)
Approx. 400 mm x 400 mm x 150 mm (varies by model)

Color
Grey/Transparent cover

Weight
Between 3 to 8 kg (depending on configuration)

Application
Solar PV Plants - Array/Combiner Box Monitoring

Type Of Technology
String Level Monitoring, Industrial Electronics

Installation Type
Outdoor/Indoor Mountable

Status Indicators
LED indicators for healthy/faulty strings

Surge Protection Device
Integrated (Type II or Type III, depends on model)

Enclosure Material
UV Resistant Polycarbonate / Powder-coated Metal

Measurement Accuracy
1% (for current sensors)

Mounting
Wall-mounted or rack-mounted

Window for Visual Inspection
Yes (Transparent Cover)

No. of Input Strings
4 to 24 strings (customizable)

Communication Interface
RS485/Modbus, Ethernet (optional)

Ingress Protection
IP65/IP66 (suitable for outdoor use)

Breakers/Fuses
Pre-installed for each string

String Monitoring Box About

Experience soaring efficiency and reliability with our String Monitoring Box-your must-have solution for solar PV array monitoring. Offering superb value, this box is designed for both outdoor and indoor use, thanks to its IP65/IP66-rated enclosure made from UV-resistant polycarbonate or powder-coated metal. Integrated surge protection devices, LED status indicators, and pre-installed fuses provide best-in-class safety and monitoring. Customizable for 4 to 24 input strings and supporting robust communication via RS485/Modbus or Ethernet, this product ensures up to 99% efficiency for all commercial-scale solar applications. Try Now for the best experience in industrial electronics!
