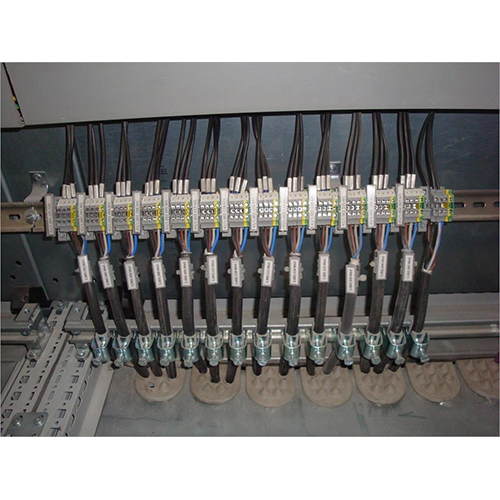

Cable Termination

Get a Price/Quote

Cable Termination Specification

Dielectiric Strength
2.5kV for 1 min

Core Material
Copper

Tensile Strength
High - meets IEC/IS standards

Usage & Applications
Electrical distribution, Industrial automation, Plant wiring, MCC

Number of Conductor
Single or multi-core

Diameter
Suitable for 1.5mm2 to 240mm2 cables (custom)

Locking Type
Screw-clamp/Pressure fit/Crimped

Cable Type
Control cable/Power cable termination

Core Number
Variable as per cable

Operating Temperature
-20C to 70C

Conductor Shape
Round

Armored Material
Steel/Aluminum (if armored type is used)

Insulation
Double Insulated (as per project requirements)

Rated Temperature
-40C to +85C

Install Type
Panel/DIN rail mounted termination

Weight
Light to moderate, as per configuration

Conductor Type
Stranded/solid

Features
Secure electrical contact, Easy installation, Durable build, Safe insulation, Compact design

Impedance
Dependent on cable type (typically 50-100 Ohm for control)

Product Type
Cable Termination Kit

Length
Customizable as per requirement

Voltage
Suitable for up to 1000V (varies by design)

Insulation Material
PVC/XLPE (as per specification)

Application
Cable connection and termination in control panels, switchgears, distribution boards

Conductor Material
Copper/Aluminum (as required)

Jacket Material
PVC

Storage Temperature
-20C to +60C

Connector Color
Metallic + Marked stripes/labels

Shield Material
Not applicable/Optional

Jacket Color
Black

Dimension (L*W*H)
As per project specification

Material
PVC, Copper, Brass (Terminal blocks)

Color
Black, with identifiable color-coded labels

Size
Customizable, varies per cable

Marking
Clear terminal number marking

Ingress Protection
IP20 to IP54 when enclosed

Flame Retardant Rating
FRLS/FR as per IS:7098

Connection Type
Screw/Crimp/Clamp

Contact Resistance
< 0.005

Torque Rating (Terminal Screw)
1-2 Nm

Compliance Standards
IEC 60947, IS 694

Installation Accessories
Supplied with lugs, identification markers, earth clamps

Packaging
Pre-packed with identification sleeves

Cable Termination About

Step into a formidable world of efficiency with our Cable Termination solutions, a dazzling choice meticulously crafted for the lofty demands of modern infrastructure. Experience instant checkout and seamless installation with our promotion-ready, buy-now packages. Rated FRLS/FR for flame retardance as per IS:7098, and offering ingress protection up to IP54, each termination guarantees safety and durability. With clear terminal markings and secure screw/crimp/clamp connections, you achieve reliable contact resistance of less than 0.005 Ohm. Supplied pre-packed with all accessories, our cable terminations set a new standard for control panels, switchgears, and distribution boards across India and global markets.

Efficient Cable Termination: Trusted by Industry Leaders

Cable Termination is widely used by electrical engineers, panel manufacturers, and plant maintenance teams for safe and reliable connections. Features of this machine include clear terminal identification, robust torque ratings, and a secure locking mechanism. Designed for ease of use, the product's compact build ensures swift installation even in confined spaces. Enhanced by double insulation and durable PVC/XLPE materials, it stands as a preferred choice in MCC, automation, and plant wiring applications.

Reliable Supply Ability and Smooth Dispatch Process

With formidable supply ability, our cable terminations are meticulously packed and readied for swift dispatch after instant checkout. We cater to a variety of payment terms to ensure smooth transactions. The product arrives safely at your location, thanks to our efficient freight and packing operations. Our main export markets include India, Asia, Africa, and Europe, meeting global standards and timely delivery expectations for wholesalers, retailers, and importers alike.

FAQ's of Cable Termination:

Q: How does the flame retardant rating of this cable termination benefit industrial applications?

A: The FRLS/FR flame retardant rating, compliant with IS:7098, enhances safety by minimizing fire risks, making it ideal for use in control panels, switchgears, and distribution boards within industrial environments.

Q: What installation accessories are included with each cable termination purchase?

A: Each termination is pre-packed with identification sleeves, lugs, earth clamps, and clear terminal number markers, facilitating a hassle-free and secure installation process.

Q: Where can this cable termination be most effectively used?

A: These cable terminations excel in electrical distribution, industrial automation, plant wiring, motor control centers (MCC), and are suitable for both panel and DIN rail mounted applications.

Q: What is the process for selecting the right cable termination size and type?

A: Selection depends on your project's cable size (1.5mm2 to 240mm2), conductor type (stranded/solid), number of cores, and installation method. Our team or technical datasheet can guide you to ensure compatibility and safety.

Q: How does the ingress protection rating contribute to product reliability?

A: With an ingress protection of up to IP54 when enclosed, the cable termination prevents dust and water entry, ensuring long-term durability and dependable performance in challenging environments.

Q: When can customers expect arrival after placing an order?

A: Dispatch and arrival times depend on order quantity, project customization, and destination, but efficient packing and freight processes help guarantee timely delivery both domestically and for export.
